A Pockels cell driver is a kind of special high-voltage source, nanosecond pulsed electric field (nsPEF) generator, optimized for operation with capacitive-type of loads, designed to produce a fast-switching voltage pulses to control the birefringence of an electro-optical crystal for manipulating the polarization state of light passing through. By this way, one obtains a voltage-controlled wave plate and a possibility to change optical system parameters.

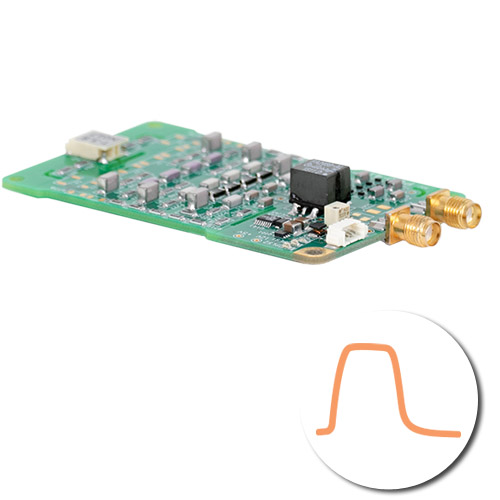

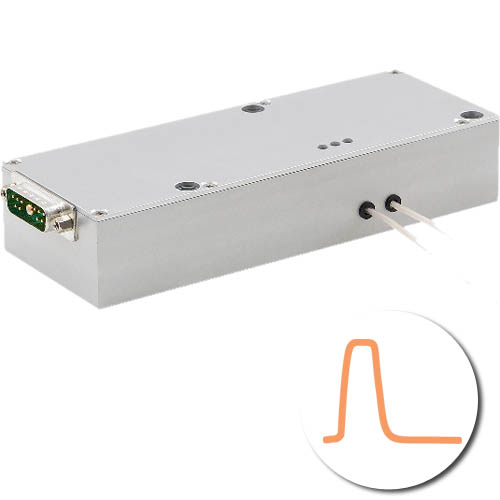

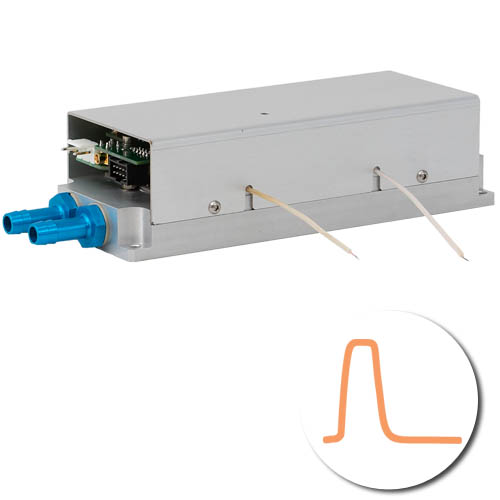

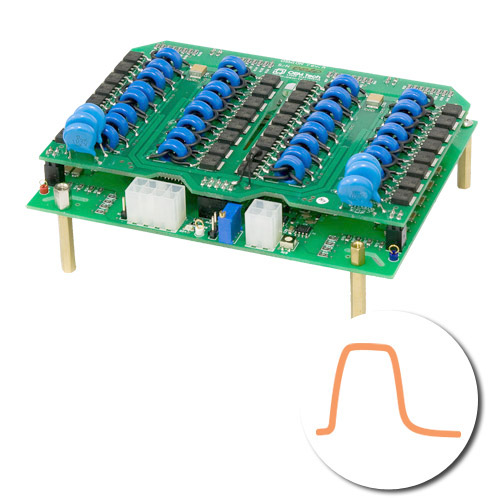

The most of our devices are bipolar when an output pulse voltage U is formed by applying +U/2 to positive output wire and –U/2 to negative. Exception is unipolar QBU‑nano and switches HVSW‑03 and -04 with alternate polarity of pulses (by default, but fixed polarity is possible). The pulse forming circuits of drivers are based on full-bridge topology (MHz rate switches HVSW‑03 and - 04), or a half-bridge concept (other drivers). All given performance values are valid for continuous mode operation, for burst mode (short pulse sequences separated by pauses) they rise sometimes twice.

Download OEM Tech Pockels cell driver catalog (1.6 Mb)
