Very compact Pockels cell drivers (8.0 x 5.0cm) producing up to 5.8 kV unipolar voltage pulses.
Good for pulse picking & pulse slicing, for laser regenerative amplifiers control.

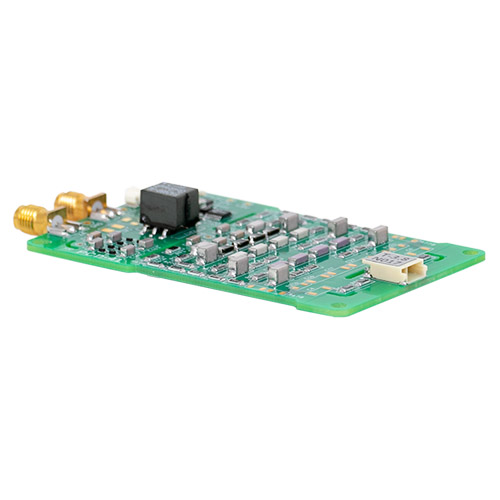

QBU-nano is a compact Pockels cell drivers producing high voltage quasi-rectangular unipolar pulses with high repetition rates, fast rise and fall time and adjustable pulse amplitude and pulse width. Wide operation temperature range is another important feature of QBU-nano.
The module requires +12 V DC power supply and a pulse generator to set an operating frequency and the pulse duration. An output voltage level (up to 5.8 kV) can be programmed in 70-100% level from VMAX range by user either manually (through onboard configuration trimpot) or automatically (applying a DC voltage between respective pins).
The output pulse duration is determined by time between two triggers, X3 and X4.
QBU-nano is based on avalanche transistors and offers fast transition time for both pulse edges, 1-3 ns.
