QBX-08 - Arbitrary waveform Pockels cell driver

High voltage single channel signal amplifier optimized for capacitive load. Requires waveform generator to set a signal form

QBX-08 - Arbitrary waveform Pockels cell driver 1
QBX-08 - Arbitrary waveform Pockels cell driver 2
QBX-08 - Arbitrary waveform Pockels cell driver 3

Applications: electro-optics (light modulation, beam deflection, beam steering), actuators (piezo, MEMS), ultrasonic devices, single channel signal amplifier

  • Arbitrary waveform - input signal amplifier
  • High voltage - up to 800 V
  • High frequency (bandwidth) - over 50 kHz at full voltage and 60 pF, up to 1 MHz at smaller voltages and loads
  • Fast transitions - < 1 μs (full slope), slew rate ~1 kV/μs

QBX-08 is a dedicated Pockels cell driver designed for continuous pulsed applications, where output voltage value should be constantly adjustable. It is essentially a single channel signal amplifier, which could serve as an electro-optical modulator, being connected to a Pockels cell. But the application field is not limited by this.

The module requires +24 V DC power supply and waveform generator to set an operating voltage and signal form. The driver is based on a voltage amplifier, maximum output voltage is 800 V (QBX-16 driver's output is up to 1600 V). A low-voltage input analog signal (0-8 V) with an arbitrary waveform is amplified with 100:1 factor and delivered to a Pockels cell.

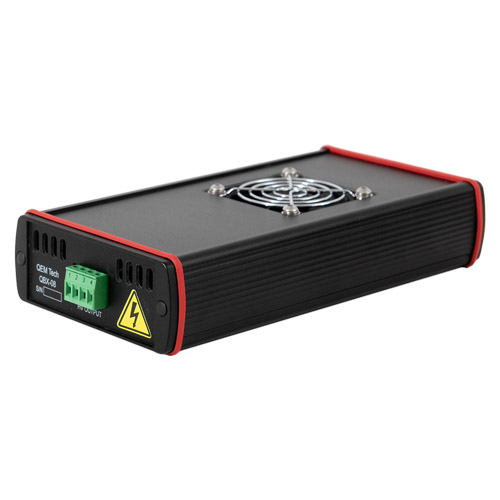

QBX-08 contains a fan for active cooling. Driver can be supplied in built-in and encased versions. Output polarity, gain, load type, maximum output voltage are subject to modifications.

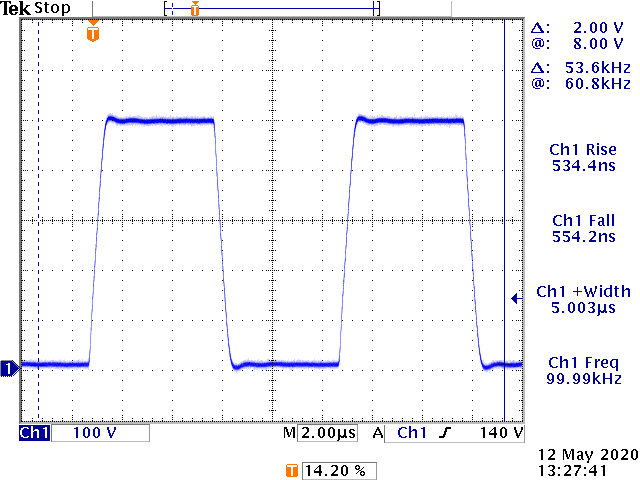

There are several examples of possible output signal form:

arbitrary pulse form Pockels cell driver, MEMS, EO modulatorarbitrary pulse form Pockels cell driver, MEMS, EO modulatorarbitrary pulse form Pockels cell driver, MEMS, EO modulator

Input:

Power input
+24 V DC, 1.5 A
Signal
Analog signal 0-8 V
Input impedance
50 Ohm

Output:

Output type
high voltage signal repeats the shape of low voltage input signal
Output polarity
positive (other on request)
Output voltage
0-800 V (100:1 amplification)
Repetition rate
Up to 1 MHz (at smaller loads and voltages)
Also limited as fMAX * C * U2 = 2W, for example:
~50 kHz @ 800 V and 60 pF
~130 kHz @ 500 V and 60 pF
Rise time (fall time)
< 1 us (full slope)
Delay time
< 1 us

Load requirements and cooling:

Load type
Capacitive (other on request)
Load capacitance
up to 60 pF (other on request)
Cooling
Forced-air with an integrated fan

Environment:

Operation temperature
+10 … +40 °C (wider temperature range is available on request)
Storage temperature
-20 … +60 °C
Humidity
0 ... 90%, non-condensing

Other:

Size (LxWxH)
206x85x45 mm
Weight
0.6 kg

Modifications

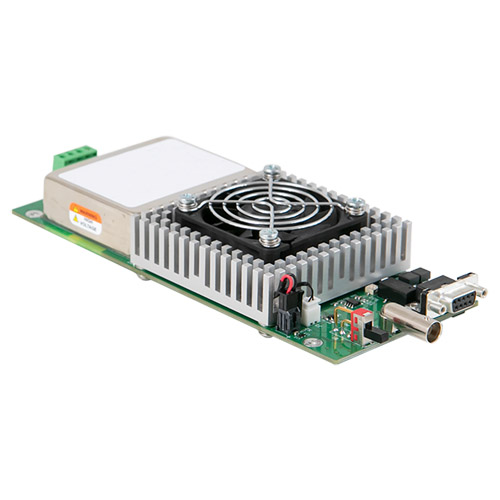

Both PCB and enclosed versions are available
